Product Manuals

If you are interested in more detail or purchased the vertical barrel already, this is where you find the more detailed construction manuals for the different and most common setup variants.


Basic ring segment assembly of aponix vertical barrel ring segment elements:

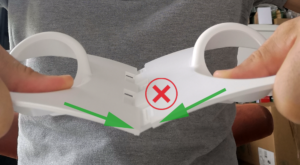

1) Assembly – Full ring segments always consist of 6 pieces. In order to assemble these pieces, please keep in mind that the goal is to build full ring segment that we like to stack into our vertical barrel later. You will have a hard time or even break connections if pieces are not aligned.

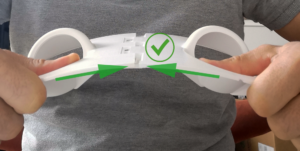

2) This is how the alignment would look like on the assembly. We are building a full horizontal ring segment (a full circle). It works the same way for the assembly of all other available ‘grow adapter’ pieces. All pieces are interchangeable, so you can configure the barrel surface for individual plant spacing.

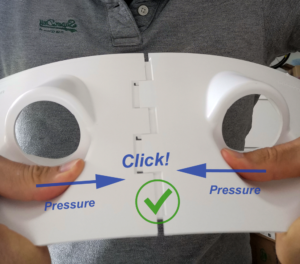

3) Assembly – Use your thumbs in front of your belly and push until you hear the click. Proceed with all 6 pieces you intend to assemble and close the ring segment also with a click the same way.

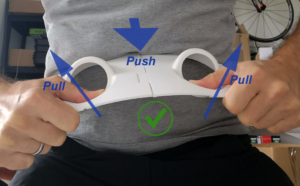

4) Disassembly – If you like to disassemble the individual pieces, grab them like shown in front of your belly. Hands pull back, belly pushes against. Note: You do not need to disassemble fully assembled ring segments for cleaning! Please check the maintenance info on how to clean after a growing cycle.

Manuals and Info Sheets

Download(2021-10): Quick Info Sheet – WallSystem
More links:

Download(2021-01): Quick Info Sheet – V3 Vertical Barrel
More links:

Download(2019-04): Manual assembly soilless standalone barrel.

More links:

Download(2018-06): Manual for substrate based standing barrel.substrate_barrel_icon

More links:

Download(2018-03): Rolling metal base for closed stand, welding/building plan.rolling_base_for_closed_stand

Until we can provide this important part ourselves, here is the building plan to set up a perfectly fitting triangle roller base for yourself. It consists of 3 simple standard rectangular metal parts welded together and it fits under our closed base – usable for substrate based and soils standalone setups.

Other things you might need / external links


Archive of old construction manuals

Download(2017-01): The manual for assembly and setup of generation 2 parts. Contents: Pre-requisites for running vertical barrels. Positioning of barrels in your production facility. System connection for circulation. Scope of delivery. Barrel assembly. Maintenance and cleaning. Storing parts. Dimensioning the pump. Material info.

Download! Old version (2016): The manual for assembly and setup of the generation 1 + 2 parts. Parts from generation 1 (prototype) will no longer be available as of October 2016.
