WallSystem Module

Add to quote loading
SKU: mmp201181. Categories: soil-based, WallSystem.
  • Description

Product Description

Download

Technical overview – metrics and installation examples.

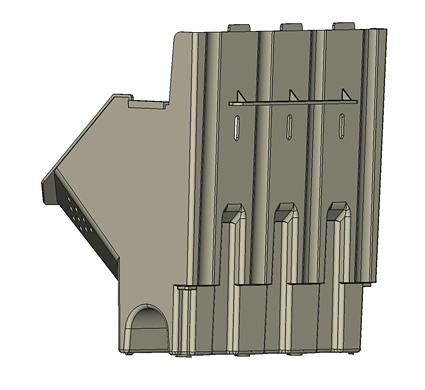

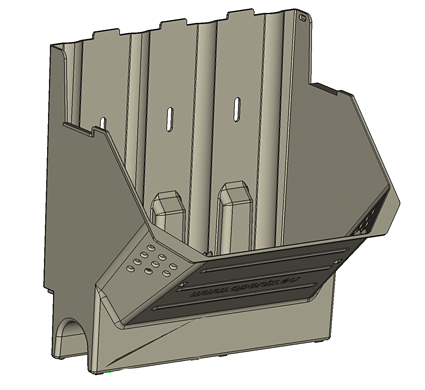

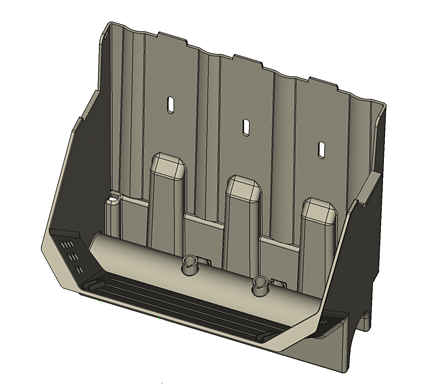

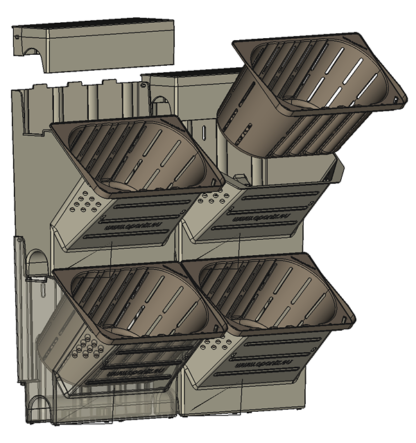

The main part of our WallSystem to be mounted in rows and columns with other modules.

Please see our WallSystem page or the more visual info sheet for more details on installation, options for liquid flow, water retention and substrates.

Material: Flame protected (V0), uv-stabilized PP, manufactured in Germany (strict EU REACH directive for raw materials), food safe use to also grow edible plants.

Dimensions: width 23.5cm, height 21cm, depth 16cm.
Weight (empty): 275g
Water retention capacity of reservoir (without substrate capacity): 250ml
Total weight per planted and watered Module: max 5kg

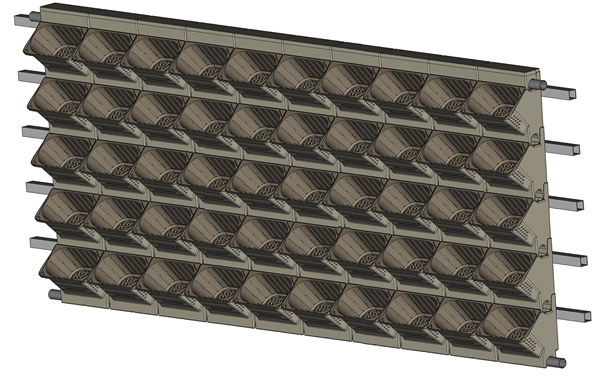

25 Modules cover ~1sqm

Color: RAL7023 / Concrete gray

—

Videos showing the liquid flow:

  • https://youtu.be/Ra9XAFZGa4E
  • https://youtu.be/UQLIKi0pgoE

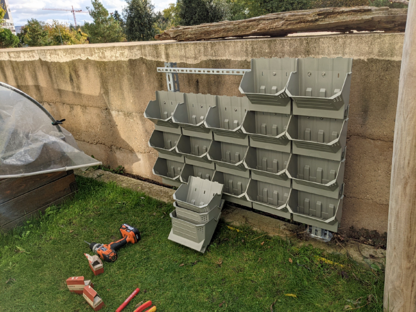

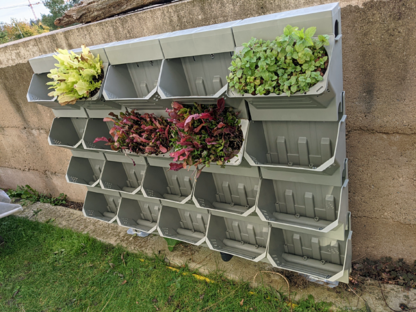

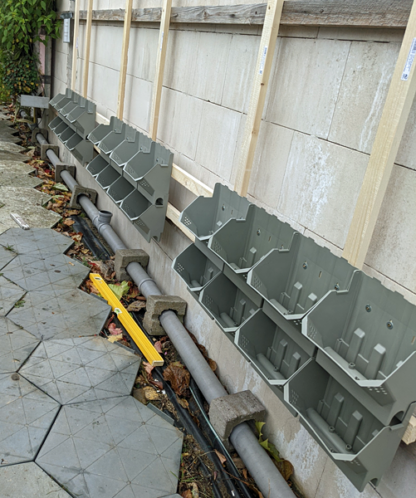

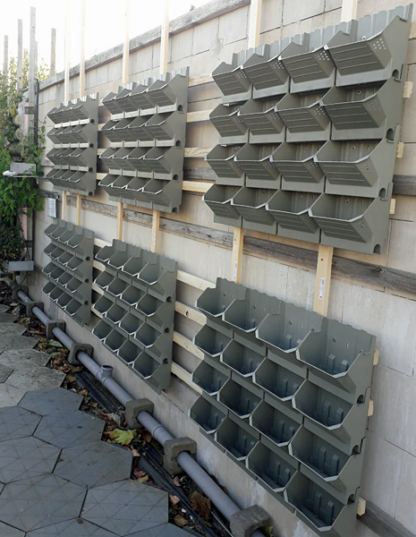

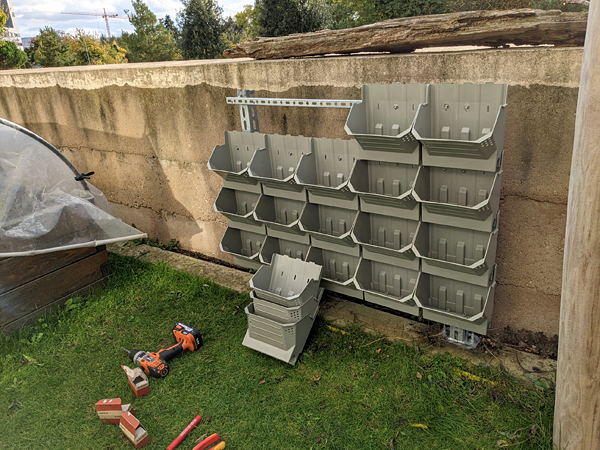

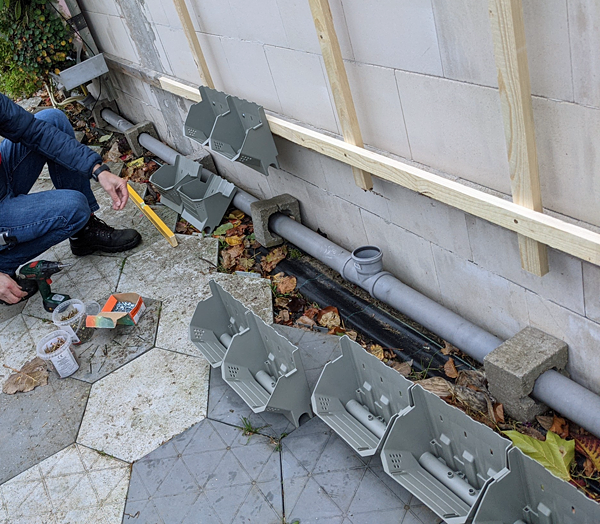

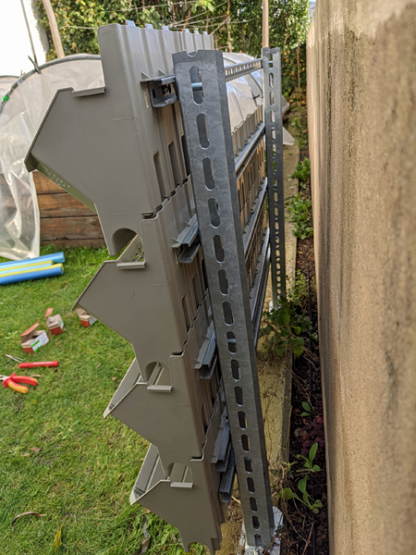

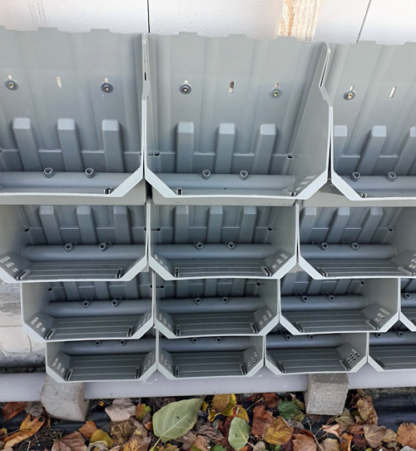

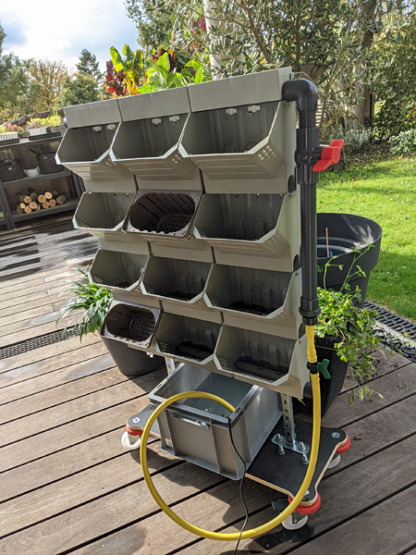

External links showing installation:

  • https://www.facebook.com/aponix.eu/posts/1722234121307166
  • https://www.facebook.com/aponix.eu/posts/1722236991306879
