Home / V2 / Discontinued: V2 Soil-less multi-barrel 12 ring segments – 142 grow spaces, pressure irrigated
Multibarrel_12RS-text-preview
Multibarrel_12RSLVG 2018LVG 2017LVG 2017aponix-soilless_commercial_barrel_12LVG 2017LVG 2017

Discontinued: V2 Soil-less multi-barrel 12 ring segments – 142 grow spaces, pressure irrigated

Add to quote loading
SKU: apo-bundle-12rs-multi. Categories: Bundle, soil-less, V2.
  • Description

Product Description

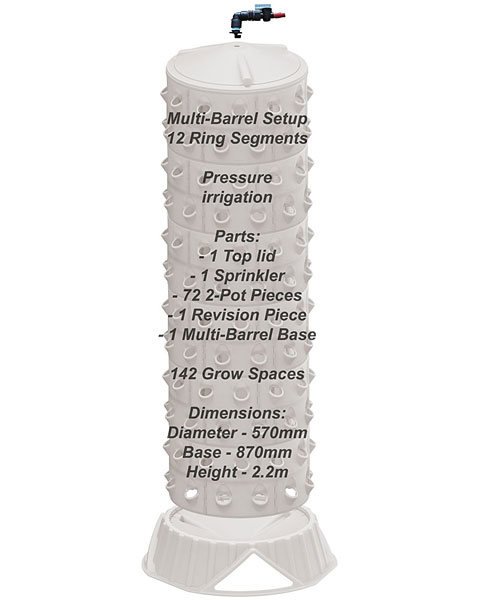

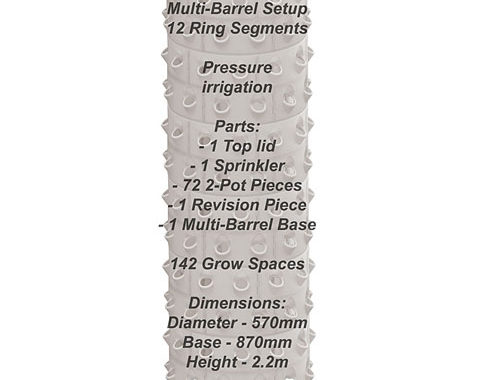

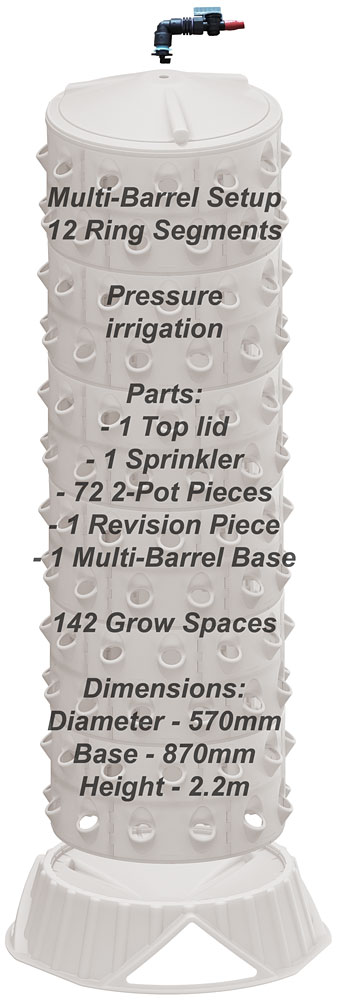

The most used size of our vertical barrel: 12 ring segments assembled using 72 of our 1/6th parts, a standing base, top lid and irrigation. This is the ideal setup if you run multiple vertical barrels. You can find some example setups on this page.

Provides 142 grow spaces (2 grow spaces are sacrificed because of the revision part) at a height of 2.2m.

For details of each part please see the single detail pages of the parts:

  • Top lid
  • Note: We are _not_ using a waterbuffer here since this bundle should be pressure irrigated using a sprinkler or spray nozzle or using our Netafim adpater.
  • Multibarrel base
  • 1/6th parts with two 2-inch net pot inserts. All pieces can be exchanged for any other soilless ring segment piece to configure plant spacing.



Please not that this is just an example setup to show the variability!



Assembly – In order to assemble a full working production system you need the following additional ingredients:

  • A reservoir for your liquid fertilizer with the right dimensions for your operations and cultivation situation. We also recommend a basic controller for pH, EC and liquid temperature.
  • A professional pressure pump/system, that can provide a your liquid fertilizer with a minimum pressure of 2+ bars from your reservoir to the top of your barrels to operate the spray nozzles/sprinklers. We recommend a mesh filter of your liquid in order to protect your sprinklers/spray nozzles from solids.
  • A gutter or gravity based solution (hoses or pipes) to direct the liquid exiting all your planned vertical barrels back to your reservoir.
  • Piping, distribution and options to switch off the pressure line(s) to the top of your planned vertical barrels.
  • Net pots, fertilizer, plants, a greenhouse, water ;).
